| Brand | FOSSiBOT |
|---|---|
| Model | F7200 |
| Product Type | Portable Power Station |
| Capacity | 5222.4Wh / 102Ah / 51.2V |
| Battery Type | LiFePO4 (LF100LA) |
| Lifecycle | 6500 cycles to 80%+ capacity |
| AC Output | 7200W Max. |
| Surge Output | 9000W |
| AC Outlets | 4 × AC |
| USB-A | 1 × QC3.0 18W |
| USB-C | 1 × PD20W + 1 × PD100W |
| AC Charging Input | 3000W Max. |
| High-Voltage Solar Input | 2500W Max., 120–450V |
| Low-Voltage Solar Input | 1200W Max., 12–55V |
| Combined AC + Solar | Up to about 5200W (AC + high-voltage + low-voltage solar), 4000W (AC + high-voltage solar), 4200W (AC + low-voltage solar) |
| Car Input | 11.5–30V/10A |
| UPS | <10ms |
| Expansion | Up to 2 × FB5222, total about 15.66kWh |
| Pass-through Charging | Yes, under 3000W |
| Dimensions | 670 × 450 × 410 mm |
| Weight | 70 kg |
| Recharge Times | AC 3000W: about 2 h 15 min. High-voltage solar 2500W: about 2 h 25 min. Low-voltage solar 1200W: about 4 h 21 min. AC + both solar inputs (5200W): about 1.5 hours. Input is limited to 2000W when the battery is above 85%. |
| Operating Temperature | Discharging -10 to 40°C, charging 0 to 40°C |
| Certifications | FCC, CE, PSE, RoHS, UN38.3, MSDS |
| Warranty | 5 years |
Maximise Savings, Find Your Ideal Energy Combination

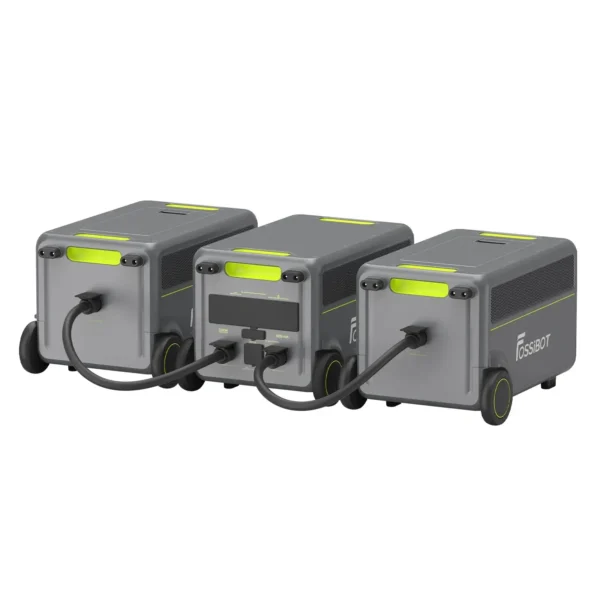

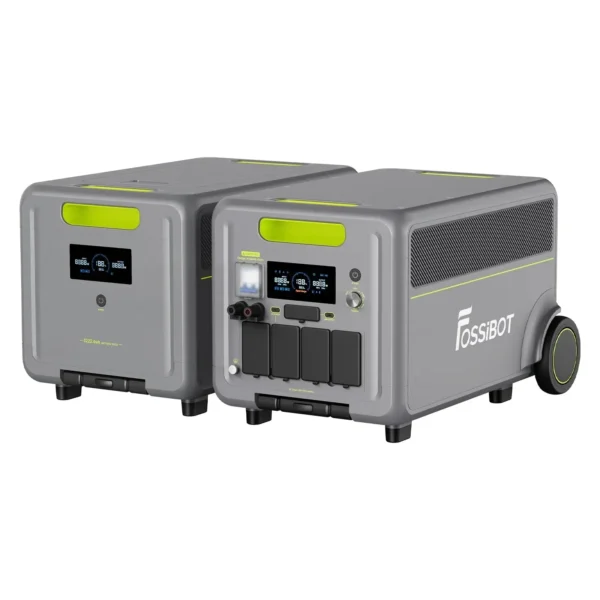

FOSSiBOT lists the F7200 as expandable with compatible FB5222 expansion batteries. This is an expansion-capacity reference, not a claim of guaranteed electricity-bill savings. Choose only manufacturer-compatible batteries and confirm the exact regional model before purchasing.
| Configuration | Battery Capacity | Expansion Batteries |
|---|---|---|
| F7200 base unit | 5,222.4Wh | None |
| F7200 + 1 × FB5222 | Approximately 10,444.8Wh total | 1 × FB5222 |
| F7200 + 2 × FB5222 | Approximately 15,667.2Wh total | 2 × FB5222 |
Capacity figures are calculated from the manufacturer-listed 5,222.4Wh base unit and compatible FB5222 expansion batteries. Actual usable energy is lower due to conversion losses and operating conditions. Confirm battery compatibility and installation requirements with FOSSiBOT for your region.
Usage / Appliances
| Appliance | Typical Power | Estimated Runtime on 5222.4Wh Base Battery |
|---|---|---|
| Range hood | 200W | 20+ hours |
| Household refrigerator | Intermittent operation | 15–22 hours |
| Small portable air conditioner | 380W | 10–12 hours |
| Small water heater | 1200W | 3.5–4 hours |
| Coffee machine | 1800W | 2–2.5 hours |
| Heavy-duty tools (chainsaw / circular saw) | ~2400W | 1.5–2 hours |
For essential home loads, FOSSiBOT EU gives approximate backup durations of about 1.5 days on the 5,222.4Wh base unit, about 3 days with one FB5222 (10,444.8Wh) and about 5 days with two (15,667.2Wh). Usable energy is roughly 4.4–4.7kWh per 5.2kWh because overall output efficiency is about 85–90%.
These runtimes are Lagonzy estimates based on the 4.4–4.7kWh of usable energy FOSSiBOT quotes for the base unit. Actual performance varies with appliance efficiency, usage, ambient temperature and operating conditions. Whole-house wiring-terminal installation requires a licensed electrician.
Advantages
- 5222.4Wh LiFePO4 capacity with 6500-cycle specification.
- Up to 7200W output and 9000W surge.

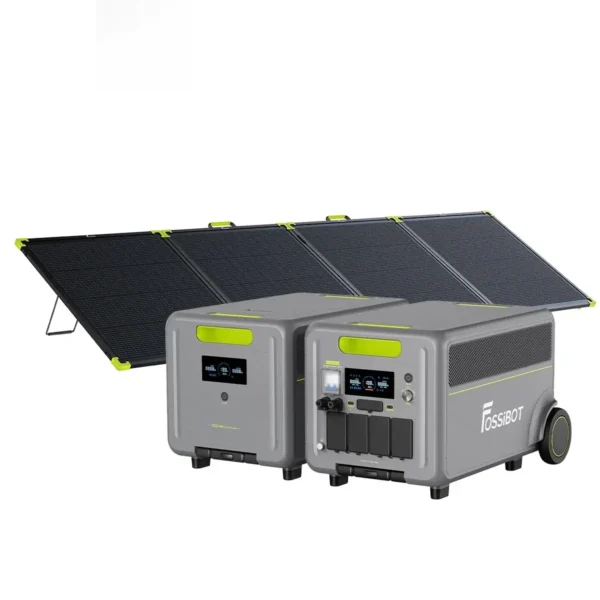

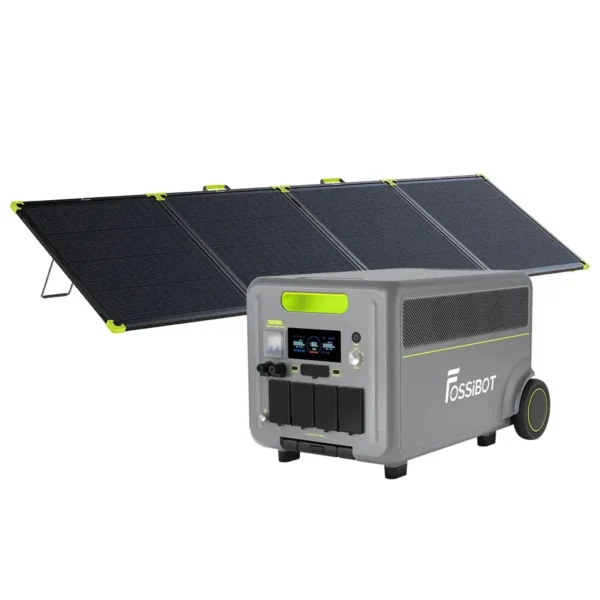

- 2500W high-voltage solar input plus 1200W low-voltage solar input.
- Expandable to about 15.66kWh.
- UPS under 10ms.
Limitations
- 70 kg makes this a heavy, non-trivial transport unit.
- High-voltage solar input requires compatible solar configuration and careful installation.
- Whole-house electrical integration requires qualified installation where applicable.
